5 Sample Inplementation

5.1 Constructing the System

5.1.1 Construction

The demonstration system is mainly composed by three stations. They are named CAM station, FADL station and MAGIC station after their special features. Figure 5.1.1 describes the whole architecture of the system.

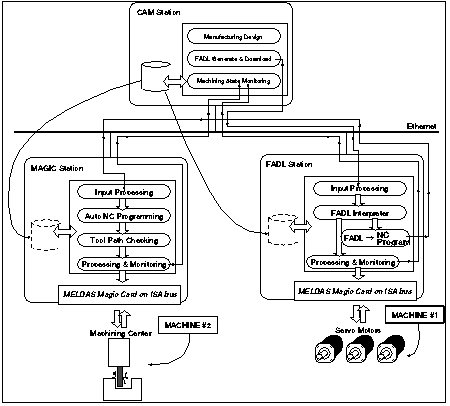

Figure 5.1.1: Diagram of the Demonstration System

Specifications of each station are as follows:

Table 5.1.1. Specifications of Each Station
Station name Type CPU OS
CAD/CAM Station SML Personal ComputerIntel DX4 100MHz Windows NT3.5 Server
Station1IBM 7344 Panel Computer486DX2 50MHzOS/2 Warp with WIN-OS2
Station2MITSUBISHI Apricot XEN-PCPentium 90MHzWindows NT3.5 WorkStation

5.1.2 Networking

The ethernet network is another key part of the system (Figure 0.0.2). The network in this system is composed of commercial 10BASE-T 8 port HUB and ISA Network Adapter on each station. There are no special parts.

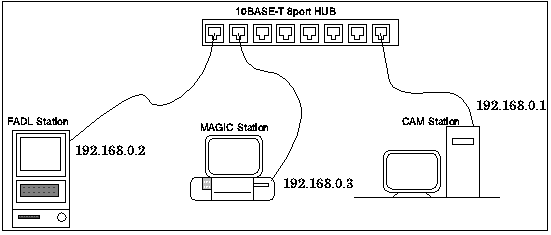

Figure 5.1.2: Networking in OSE Demonstration System

5.1.3 Open System Application

When demonstrating at this time, merits seen from the viewpoint of the "open system" are as follows.
